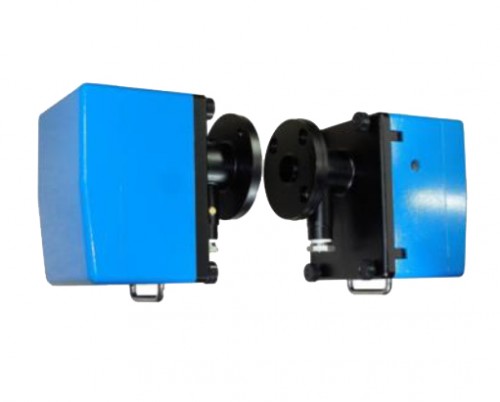

A device that measures the dust emitted from boilers, power plants, incinerators, electric arc furnaces,
smelting/melting furnaces, sintering furnaces, heating furnaces, glass melting furnaces, cement drying/calcining/cooling facilities, etc.
| |
|
| • Measuring method | light transmission |
| • Light source | 658nm LASER Diode |
| • Range | 0 ~5/10/15/30/50/100/200/20,000 ㎎/㎥(Selectable |
| • Detection limit | 0.1 ㎎/㎥ |
| • Alibration erro | less than 2% |
| • Repeatability | less than ±2% F.S. |
| • Zero Drift (2hr/24hr) | less than 0.5% F.S. |
| • Span Drift (2hr/24hr) | less than 0.5% F.S. |
| • Measuring length | 0.3 ~ 30 m |
| • Ambient condition | -30deg.C ~ 50deg.C |
| • Measuring temperature | Max. 700deg.C |
| • Analog output | 4 – 20 mA x 2 Ch(Dust & Opacity) (Max. 500Ω) |
| • Communication port | RS232(to Data logger), RS422(to Analyzer) |
| • Power | 110/220VAC, 50/60Hz, 1kW(Max.) |
